Micro-USB 2.0 Type B receptacle with 5 positions and 5 contacts, featuring a 0.65mm pitch. This right-angle, surface-mount connector offers a 1.8A current rating and 30V voltage rating, with gold-plated copper alloy contacts. Designed for solder termination, it operates within a temperature range of -30°C to 85°C and is packaged on tape and reel.
Voltage Rating30V
Current Rating1.8A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 1050170001 technical specifications.
General
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1.8A |
| Depth | 7.5mm |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Length | 8.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 0.65mm |
| Plating | Gold |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 105017 |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 1050170001 Datasheet
Download the complete datasheet for Molex 1050170001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

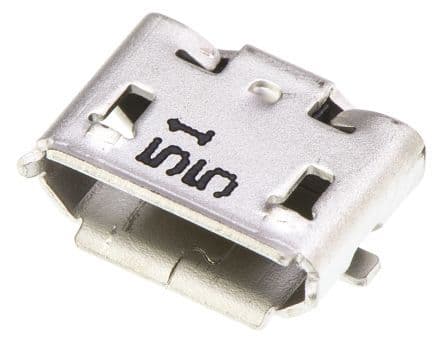

Product Images
