Surface mount vertical USB 2.0 receptacle with a 0.65mm pitch, featuring 5 contacts and 5 circuits. This shielded, low halogen connector offers a 1.8A current rating and 30V AC voltage rating, with gold-plated copper alloy contacts for 10,000 mating cycles. Designed for vertical orientation, it mounts via solder termination and is supplied on tape and reel.
Voltage Rating30V
Current Rating1.8A
MountingSurface Mount, Vertical
Quick Jump:
Technical Specifications
Molex 105133-0011 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1.8A |
| Depth | 4.45mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Insulation Color | Black |
| Lead Free | Lead Free |
| Length | 8mm |
| Mating Cycles | 10000 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Surface Mount, Vertical |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.65mm |
| Plating | Tin |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 105133 |
| Shielding | Shielded |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 105133-0011 Datasheet
Download the complete datasheet for Molex 105133-0011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

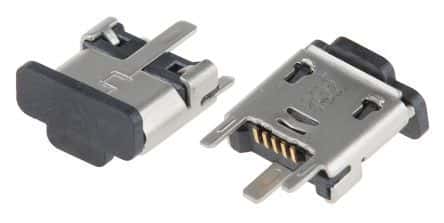

Product Images
