Right-angle, surface-mount microSD card socket featuring 8 positions and a single row configuration. This connector utilizes bronze contacts with gold plating for reliable conductivity. Designed for solder termination, it operates within a temperature range of -40°C to 85°C and supports a maximum voltage rating of 5V DC. The component measures 11.3mm in length and 7.6mm in depth, supplied in tape and reel packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 1051620001 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 7.6mm |
| Length | 11.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 5V |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | 105162 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Molex 1051620001 Datasheet
Download the complete datasheet for Molex 1051620001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

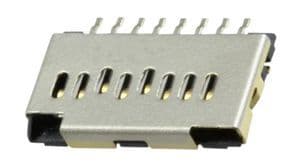

Product Images
