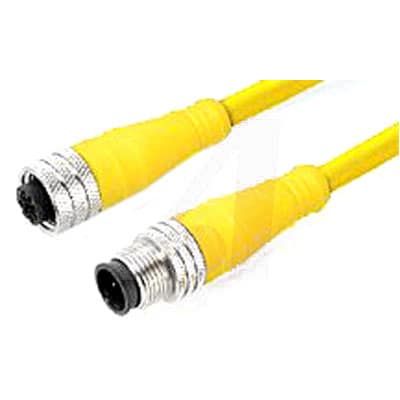

4-pole M12 double-ended cordset featuring straight, free-hanging M12 receptacle and plug connectors. This round, unshielded cable assembly utilizes 22AWG conductors with copper contacts plated in nickel and gold. Rated for 4A and 250V, it operates within a temperature range of -20°C to 105°C and offers IP67, waterproof, and dust-tight protection. The yellow PVC jacket extends 16.4 feet, and the assembly is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 1200660284 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 1200660284 technical specifications.
| Color | Yellow |
| Connector Type A | M12, Receptacle |
| Connector Type B | M12, Plug |
| Contact Material | Copper |
| Contact Plating | Nickel, Gold |
| Current Rating | 4A |
| ELV | Compliant |
| Gender | Male to Female |
| Jacket Material | PVC |
| Length | 16.4foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Free Hanging |
| Number of Conductors | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Brad® Micro-Change® 120066 |
| Shielding | Unshielded |
| Voltage Rating | 250V |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Round |
| RoHS | Compliant |
