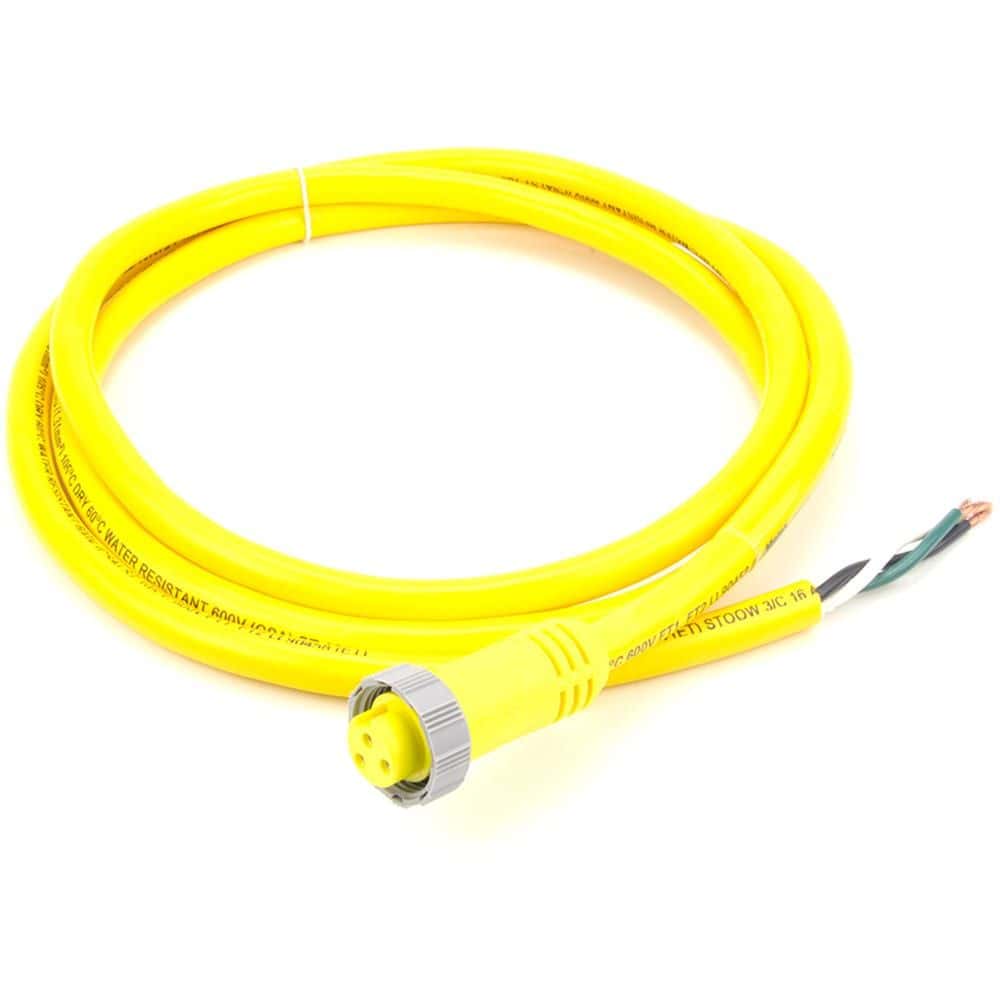

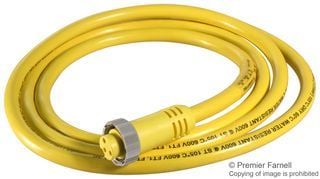

This 6ft cable assembly features a 3-conductor design with a 16AWG wire gauge and a PVC jacket. It has a voltage rating of 600V and a current rating of 13A. The connectors are made of brass with a nickel and gold plating, and the cable is unshielded. The assembly is rated for IP67, waterproof and dust tight, and is compliant with RoHS regulations. It is available in a single unit package and has a straight orientation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 1300060223 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 1300060223 technical specifications.
| Package/Case | Metal |
| Color | Yellow |
| Connector Type A | Plug |
| Connector Type B | Wire Leads |
| Contact Material | Brass |
| Contact Plating | Nickel, Gold |
| Current Rating | 13A |
| Gender | Female |
| Jacket Material | PVC |
| Length | 6foot |
| Mount | Free Hanging |
| Number of Conductors | 3 |
| Orientation | Straight |
| Package Quantity | 1 |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | Brad® Mini-Change® 130006 |
| Shielding | Unshielded |
| Voltage Rating | 600V |
| Wire/Cable Gauge | 16AWG |
| Wire/Cable Type | Round |
| RoHS | Compliant |
