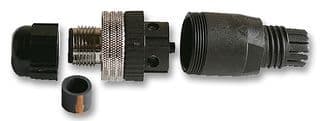

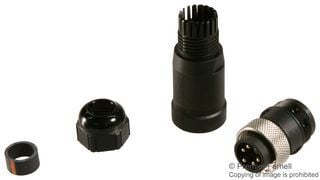

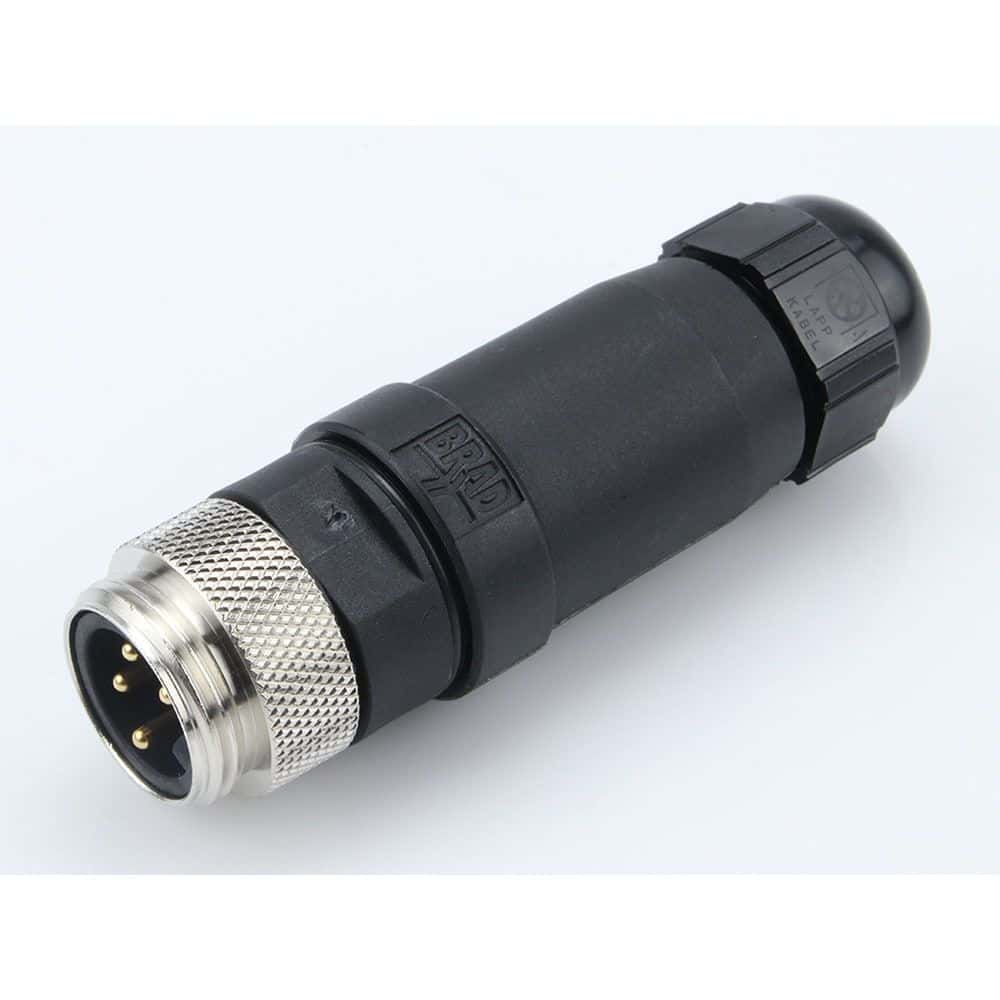

Four-position, straight circular connector featuring male pins with gold-plated copper alloy contacts for superior conductivity. This free-hanging, cable-mount component offers a 10A current rating and a 600V AC/DC voltage rating, with a maximum operating temperature of 80°C. Constructed with a brass shell and nylon/polyamide body, it provides IP67, waterproof, and dust-tight protection. Termination is via screw, and the connector is RoHS compliant.
Voltage Rating600V
Current Rating10A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 1300170020 technical specifications.
General
| Body Material | Nylon, Polyamide |
| Color | Black, Silver |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 10A |
| Gender | Female |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Cores | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Nylon |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 130017 |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Strain Relief | No (Without) |
| Termination | Screw |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
Compliance
| RoHS | Compliant |
