Female photovoltaic socket for solar applications, featuring a straight, single-position, single-contact design. Rated for 15A current and 14AWG wire gauge, this black connector offers IP67 ingress protection. Operating temperature range spans from -40°C to 80°C, with panel and cable mounting options. Crimp termination ensures secure connections within a black housing.
Current Rating15A
MountingPanel, Cable
Quick Jump:
Technical Specifications
Molex 130244-0203 technical specifications.
General
| Color | Black |
| Current Rating | 15A |
| Depth | 18.8mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Length | 55.7mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 600 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SolarSpec |
| Termination | Crimp |
| Weight | 0.250657oz |
| Wire/Cable Gauge | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 130244-0203 Datasheet
Download the complete datasheet for Molex 130244-0203 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

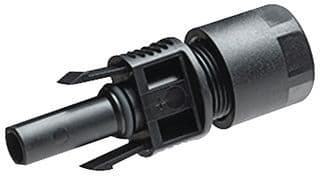

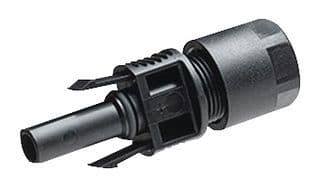

Product Images
