Five-position, single-row female socket header with gold-plated bronze contacts and a black housing. Features a 2.54mm pitch, 3A current rating, and 250V voltage rating. Designed for free-hanging mounting and IDT termination, accepting 26AWG discrete or ribbon wire. Operating temperature range is -40°C to 105°C.
Voltage Rating250V
Current Rating3A
MountingFree Hanging
Quick Jump:
Technical Specifications
Molex 14-56-3051 technical specifications.
General
| Color | Black |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 15.24mm |
| Gender | Female |
| Housing Color | Black |
| Length | 12.67mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | C-Grid® SL™ 70400 |
| Termination | IDT |
| Voltage Rating | 250V |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Discrete, Ribbon |
Compliance
| RoHS | Compliant |
Datasheet
Molex 14-56-3051 Datasheet
Download the complete datasheet for Molex 14-56-3051 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

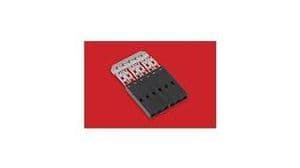

Product Images
