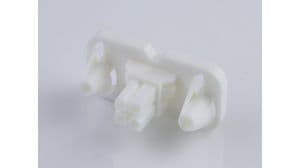

Rectangular power connector featuring 4 female contacts with tin plating, designed for panel mounting with a straight orientation. This receptacle offers a 13A current rating and operates within a temperature range of -40°C to 105°C, with a maximum voltage rating of 600V AC and 600.6kV DC. The natural colored housing has a pitch of 4.2mm and a row spacing of 0.165 inches, with dimensions of 40.2mm length, 17.3mm width, and 19.6mm depth. This RoHS compliant component utilizes crimp termination and is low halogen.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 15-06-0041 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 15-06-0041 technical specifications.
| Color | Natural |
| Contact Gender | Female |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 13A |
| Depth | 19.6mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Length | 40.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Panel |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® BMI™ 42474 |
| Termination | Crimp |
| Width | 17.3mm |
| RoHS | Compliant |
