6-position, 2-row female receptacle connector with straight orientation and a 4.2mm pitch. Features brass contacts with tin plating, rated for 13A current and 600V AC/600.6kV DC. Non-compliant with glow wire standards, low halogen, and RoHS compliant. Designed for panel mounting with a natural housing color and a crimp termination.
Current Rating13A
MountingPanel
Quick Jump:
Technical Specifications
Molex 15-06-0061 technical specifications.
General
Color
Natural
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin
Contact Type
Female Socket
Current Rating
13A
Depth
19.6mm
Gender
Female
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Housing Color
Natural
Length
44.4mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600.6kV
Mount
Panel
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
4.2mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.165inch
Series
Mini-Fit® BMI™ 42474
Termination
Crimp
Width
17.3mm
Compliance
RoHS
Compliant
Datasheet
Molex 15-06-0061 Datasheet
Download the complete datasheet for Molex 15-06-0061 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

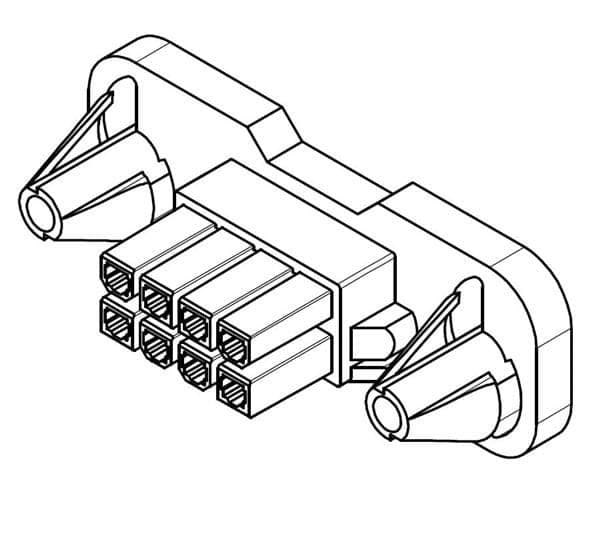

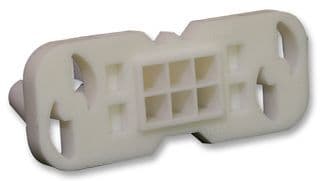

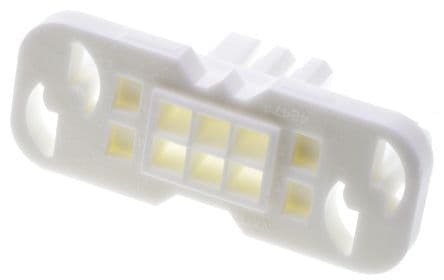

Product Images
