Rectangular power connector featuring 24 female socket contacts made of brass with tin plating. This receptacle offers a straight, panel-mount orientation with a 4.2mm pitch and 2 rows. Rated for 13A current and 600V AC/600.6kV DC, it operates within a temperature range of -40°C to 105°C. The natural colored housing is lead-free and low halogen, with solder terminal termination.
Current Rating13A
MountingPanel
Quick Jump:
Technical Specifications
Molex 15-06-0241 technical specifications.
General
| Color | Natural |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 13A |
| Depth | 19.6mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 82.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Panel |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® BMI™ 42474 |
| Termination | Crimp |
| Width | 17.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 15-06-0241 Datasheet
Download the complete datasheet for Molex 15-06-0241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

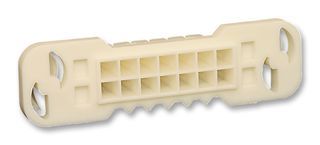

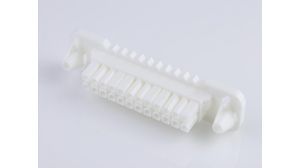

Product Images
