24-position, 2-row rectangular power connector featuring male pin contacts with tin plating. This straight, panel-mount plug offers a 4.2mm pitch and 9A current rating, operating within a -40°C to 105°C temperature range. It supports up to 600V AC and 600.6kV DC, with a lead-free and low-halogen housing in a natural color. Termination is via crimp, and the connector is RoHS compliant.
Current Rating9A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Molex 15-06-0245 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 9A |
| Depth | 25.6mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 57.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Panel, Snap in |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® BMI™ 42475 |
| Termination | Crimp |
Compliance
| RoHS | Compliant |
Datasheet
Molex 15-06-0245 Datasheet
Download the complete datasheet for Molex 15-06-0245 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

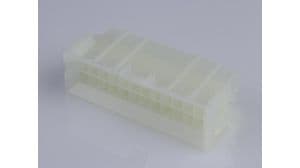

Product Images
