18-position, 2-row male header connector with a 4.2mm pitch and right-angle orientation. Features brass male pin contacts with tin plating, a 13A current rating, and a 600V voltage rating. Designed for through-hole mounting with solder termination, operating within a -40°C to 105°C temperature range. Housing is white, natural color, UL94 V-2 flammability rated, and low halogen.
Voltage Rating600V
Current Rating13A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 15-24-6180 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Post Length | 3.3mm |
| Contact Type | Male Pin |
| Current Rating | 13A |
| Depth | 20.7mm |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | White |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Through Hole |
| Number of Circuits | 18 |
| Number of Contacts | 18 |
| Number of Ports | 1 |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® BMI™ 42404 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 15-24-6180 Datasheet
Download the complete datasheet for Molex 15-24-6180 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

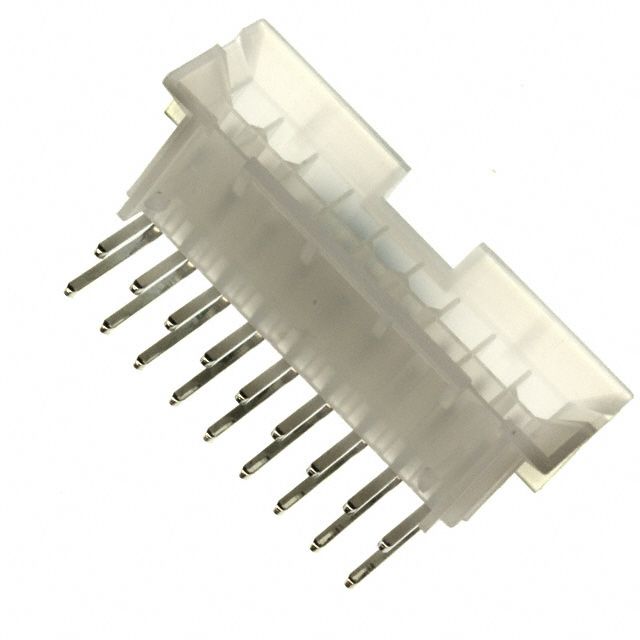

Product Images
