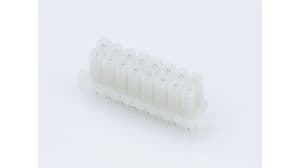

16-position, 2-row vertical receptacle header with 4.20mm pitch. Features female socket contacts made of brass with tin plating, rated for 9A current and 600V AC / 600.6kV DC. Designed for through-hole mounting with snap-in pegs and solder termination. Operating temperature range from -40°C to 105°C. Natural color, RoHS compliant.
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 15-24-7160 technical specifications.
General
Color
Natural
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin
Contact Type
Female Socket
Current Rating
9A
Depth
9.6mm
Gender
Female
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
600.6kV
Mount
Through Hole
Number of Contacts
16
Number of Ports
1
Number of Positions
16
Number of Rows
2
Orientation
Straight
Package Quantity
960
Packaging
Tray
Pitch
4.2mm
RoHS Compliant
Yes
Row Spacing
0.165inch
Series
Mini-Fit® BMI™ 42385
Termination
Solder
Voltage Rating (AC)
600V
Compliance
RoHS
Compliant
