Voltage Rating600V
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications

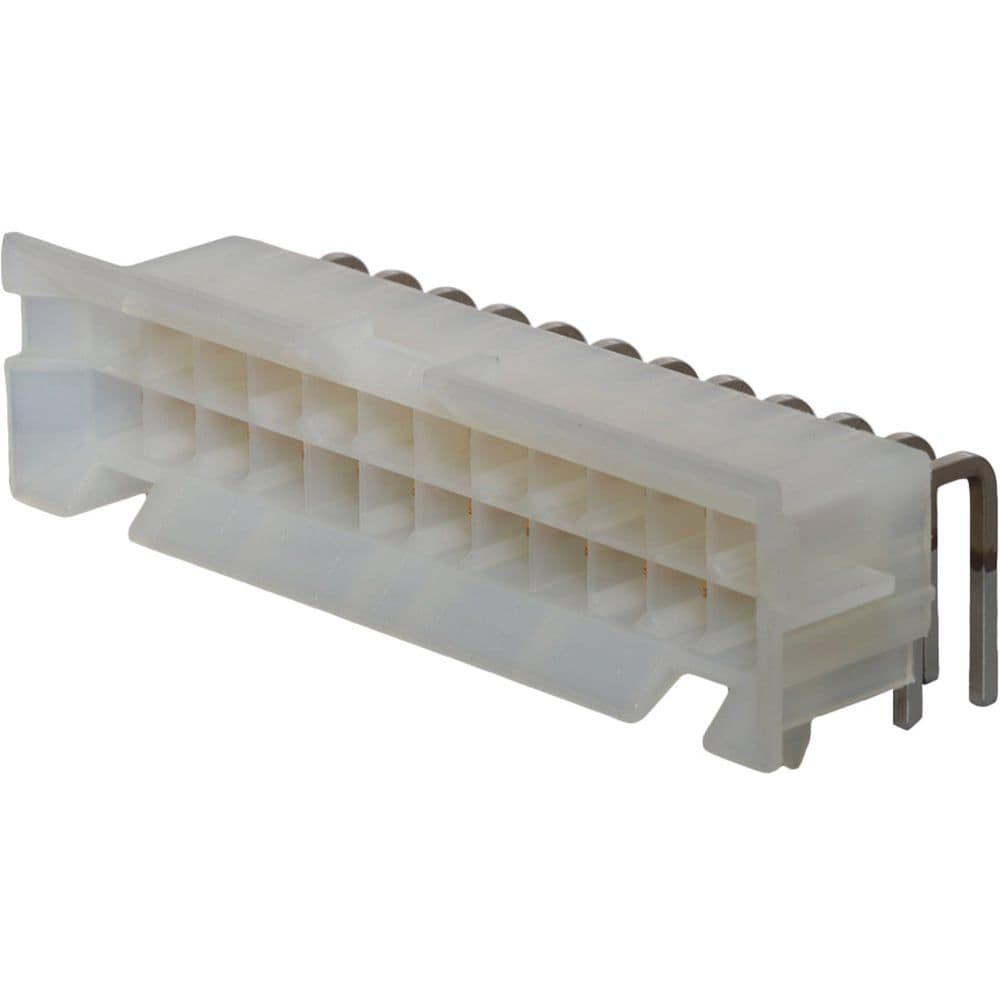

Molex 15-24-9247 technical specifications.
General
Contact Material
Brass
Contact Plating
Gold
Current Rating
6A
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Circuits
24
Number of Contacts
24
Number of Positions
24
Number of Rows
2
Orientation
Right Angle
Package Quantity
200
Packaging
Tray
Pitch
4.2mm
RoHS Compliant
Yes
Row Spacing
5.5mm
Series
42404
Termination
Through Hole
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
Molex 15-24-9247 Datasheet
Download the complete datasheet for Molex 15-24-9247 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
