50-position, 2-row male rectangular connector with 2.54mm pitch, straight orientation, and solder termination. Features a black housing made of copper alloy with gold plating for contacts, rated for 1A current and 30V DC voltage. This through-hole mount component has a UL94 V-0 flammability rating, is low halogen, lead-free, and RoHS compliant.
Voltage Rating30V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 15-92-2050 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 9.84mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Lead Free | Lead Free |
| Mount | Through Hole |
| Number of Circuits | 50 |
| Number of Contacts | 50 |
| Number of Ports | 1 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | EBBI™ 71661 |
| Termination | Solder |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 15-92-2050 Datasheet
Download the complete datasheet for Molex 15-92-2050 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

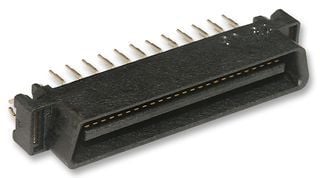

Product Images
