Vertical 4-position, 2-row male pin header for PCB mounting. Features 4 circuits with brass contacts plated in tin, rated for 8A current and 600V DC voltage. This black, through-hole connector offers a 4.2mm pitch and 12.7mm depth, with a UL94 V-0 flammability rating. RoHS compliant and designed for solder termination.
Voltage Rating600V
Current Rating8A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 15-97-7042 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 8A |
| Depth | 12.7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 500 |
| Packaging | Bag |
| Pitch | 4.2mm |
| Plating | Tin |
| RoHS Compliant | Yes |
| Row Spacing | 0.217inch |
| Series | Mini-Fit® TPA™ 30069 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 15-97-7042 Datasheet
Download the complete datasheet for Molex 15-97-7042 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

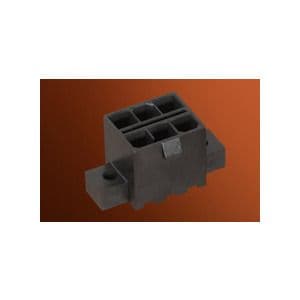

Product Images
