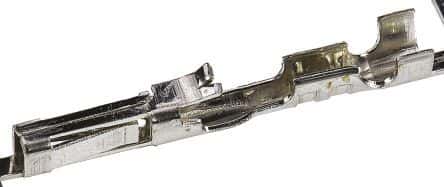

Female wire terminal for signal applications, featuring a straight, unshielded design with a bronze contact material and tin plating. Rated for 3A current and 250V voltage, this component supports wire gauges from 30AWG to 24AWG. Operating temperature range is -40°C to 105°C. The terminal measures 12.88mm in length, 2.03mm in height, and 2.29mm in depth. Packaging is tape and reel, with 20,000 units per package.
Voltage Rating250V
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
Molex 16-02-0069 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Signal
Current Rating
3A
Depth
2.29mm
ELV
Compliant
Gender
Female
Halogen Free
Low Halogen
Height
2.03mm
Length
12.88mm
Material
Bronze
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Contacts
1
Orientation
Straight
Package Quantity
20000
Packaging
Tape and Reel
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SL
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Molex 16-02-0069 Datasheet
Download the complete datasheet for Molex 16-02-0069 to view detailed technical specifications.
