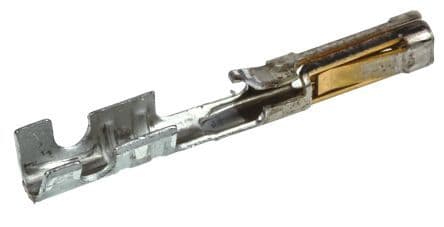

Female signal terminal with a 2.54mm pitch, designed for crimp termination. Features bronze and brass contacts with gold, tin, and copper plating, supporting a 3A current rating and 250V AC voltage. This straight, unshielded component has a white housing and is suitable for cable or through-hole mounting. Operating temperature range is -40°C to 105°C, with a maximum wire gauge of 22AWG.
Voltage Rating250V
Current Rating3A
MountingCable, Through Hole
Quick Jump:
Technical Specifications
Molex 16-02-0104 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze, Brass
Contact Plating
Gold, Tin, Copper
Contact Type
Signal
Current Rating
3A
Depth
1.32mm
ELV
Compliant
Gender
Female
Halogen Free
Low Halogen
Height
2.18mm
Housing Color
White
Lead Free
Lead Free
Length
12.88mm
Material
Bronze
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Cable, Through Hole
Number of Contacts
6
Number of Rows
1
Orientation
Straight
Package Quantity
5000
Packaging
Bulk
Pitch
2.54mm
Plating
Tin
Primary Type
Rectangular
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
C-Grid® SL™ 70058
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Molex 16-02-0104 Datasheet
Download the complete datasheet for Molex 16-02-0104 to view detailed technical specifications.
