Male signal terminal for cable mounting, featuring a straight orientation and crimp termination. Constructed from bronze with gold and tin plating, this component supports a maximum current rating of 3A and a minimum of 20mA, with a voltage rating of 20mV. It accommodates wire gauges from 24AWG to 22AWG and operates within a temperature range of -40°C to 105°C. The terminal is RoHS compliant and packaged in bulk.
Voltage Rating20mV
Current Rating20mA
MountingCable
Quick Jump:
Technical Specifications
Molex 16-02-0115 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Type | Signal |
| Current Rating | 20mA |
| Depth | 2.03mm |
| ELV | Compliant |
| Gender | Male |
| Halogen Free | Low Halogen |
| Height | 2.18mm |
| Lead Free | Lead Free |
| Length | 21.39mm |
| Material | Bronze |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 1 |
| Orientation | Straight |
| Package Quantity | 12000 |
| Packaging | Bulk |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SL 70021 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 20mV |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 16-02-0115 Datasheet
Download the complete datasheet for Molex 16-02-0115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

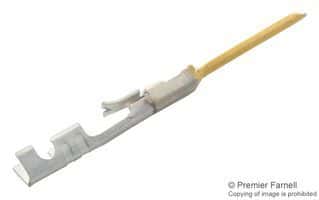

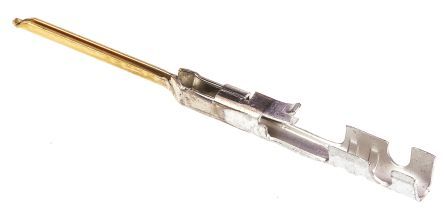

Product Images
