Female signal terminal for crimp termination, featuring bronze and copper contacts with gold and tin plating. This rectangular component offers a 3A current rating and 250V voltage rating, operating within a -40°C to 105°C temperature range. Designed for cable mounting with a straight orientation, it accommodates wire gauges from 24AWG to 22AWG. RoHS compliant and lead-free, this bulk-packaged terminal is suitable for assembly applications.
Voltage Rating250V
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
Molex 16-02-1125 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze, Copper
Contact Plating
Gold, Tin
Contact Type
Signal
Current Rating
3A
Depth
1.32mm
ELV
Compliant
Gender
Female
Halogen Free
Low Halogen
Height
2.18mm
Lead Free
Lead Free
Length
12.88mm
Material
Bronze
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Cable
Orientation
Straight
Package Quantity
5000
Packaging
Bulk
Primary Type
Rectangular
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
C-Grid® SL™ 71851
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Molex 16-02-1125 Datasheet
Download the complete datasheet for Molex 16-02-1125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

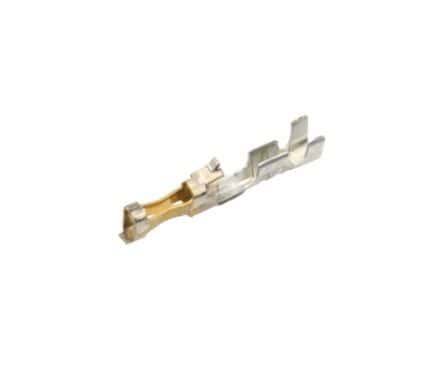

Product Images
