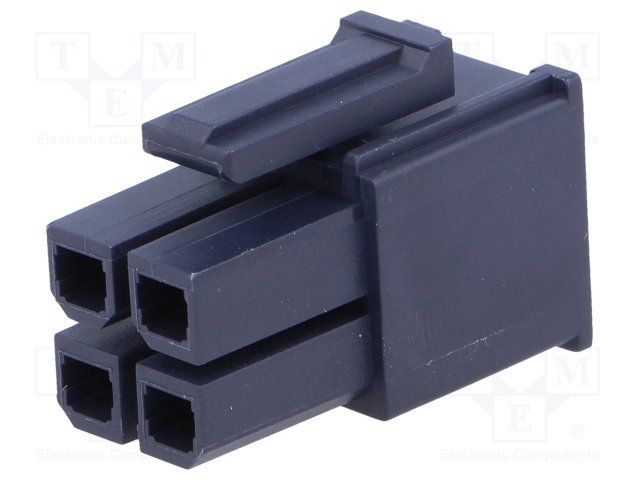

Rectangular power connector featuring 4 contacts and 2 rows with a 5.7mm pitch. This female receptacle offers a 23A current rating and 600V voltage rating, designed for free-hanging, cable mounting with crimp termination. Operating temperature range spans from -40°C to 105°C, with a UL94 V-2 flammability rating and glow wire compliance. The black connector measures 12.05mm in length, 14.26mm in width, and 24.92mm in depth.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 170001-0104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Type | Female Socket |
| Current Rating | 23A |
| Depth | 24.92mm |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Length | 12.05mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1120 |
| Packaging | Bulk |
| Pitch | 5.7mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Mega-Fit 170001 |
| Termination | Crimp |
| Voltage Rating | 600V |
| Width | 14.26mm |
| RoHS | Compliant |
