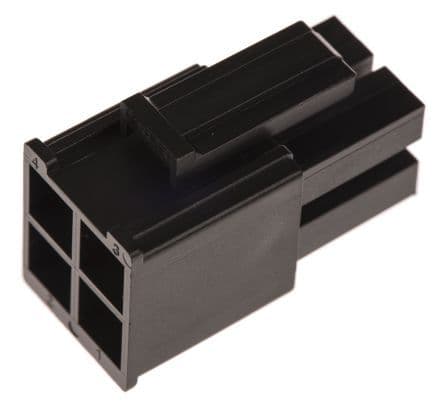

4-circuit, 2-row, 5.7mm pitch rectangular connector housing with a straight, male gender and female socket contact type. This free-hanging, cable-mount receptacle features a 23A current rating and 600V voltage rating, operating between -40°C and 105°C. Constructed from black, UL94 V-0 rated material, it offers crimp termination and a compact design with dimensions of 12.05mm length, 14.26mm width, and 24.92mm depth. RoHS compliant and packaged in bulk.
Voltage Rating600V
Current Rating23A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 171692-0104 technical specifications.
General
| Color | Black |
| Contact Type | Female Socket |
| Current Rating | 23A |
| Depth | 24.92mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Length | 12.05mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1120 |
| Packaging | Bulk |
| Pitch | 5.7mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Mega-Fit |
| Termination | Crimp |
| Voltage Rating | 600V |
| Width | 14.26mm |
Compliance
| RoHS | Compliant |
