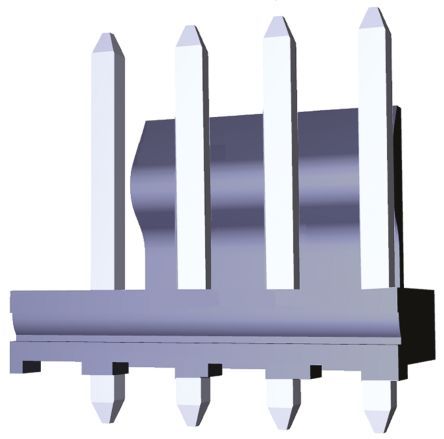

This Molex KK 171813-3004 connector features a vertical orientation and a contact mating length of 0.448inch. It has a current rating of 13A and a voltage rating of 600V. The connector is compliant with glow wire and has a low halogen content. It is available in a tape and reel packaging and has a pitch of 3.96mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 171813-3004 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 171813-3004 technical specifications.
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.448inch |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 13A |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Packaging | Tape and Reel |
| Pitch | 3.96mm |
| Reach SVHC Compliant | Unknown |
| Series | KK® 171813 |
| Termination | Solder |
| Voltage Rating | 600V |
| RoHS | Compliant |
