This wire-to-board connector features a 3.96mm pitch and a 6-contact, 1-row configuration. It is a vertical, through-hole mounted header with male pin contacts made of brass and plated with tin. The connector offers a 13A current rating and a 600V voltage rating, with nylon insulation in black. It is UL94 V-2 flammability rated and glow wire compliant.
Voltage Rating600V
Current Rating13A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 171813-3006 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 13A |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Packaging | Tape and Reel |
| Pitch | 3.96mm |
| Reach SVHC Compliant | Unknown |
| Series | KK 171813 |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 171813-3006 Datasheet
Download the complete datasheet for Molex 171813-3006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

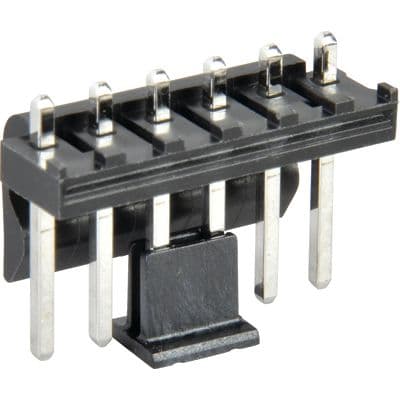

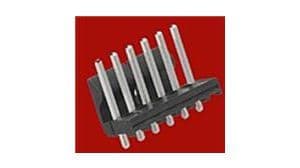

Product Images
