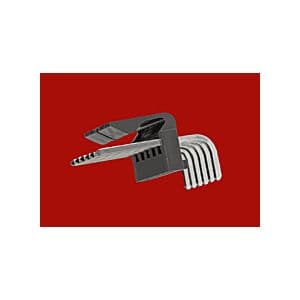

Right-angle male pin header with 6 circuits and 3.96mm pitch. Features brass contacts with tin plating, rated for 7A current and 250V voltage. Operates between -40°C and 105°C, with UL94 V-2 flammability rating and low halogen content. Through-hole termination for secure mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 171814-0006 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Gender | Male |
| Contact Material | Brass, Tin |
| Contact Mating Length | 0.446inch |
| Contact Plating | Tin, Matte |
| Contact Post Length | 2.54mm |
| Contact Type | Male Pin |
| Current Rating | 7A |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 750 |
| Packaging | Bulk |
| Pitch | 3.96mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 171814 |
| Termination | Through Hole |
| Voltage Rating | 250V |
| RoHS | Compliant |
