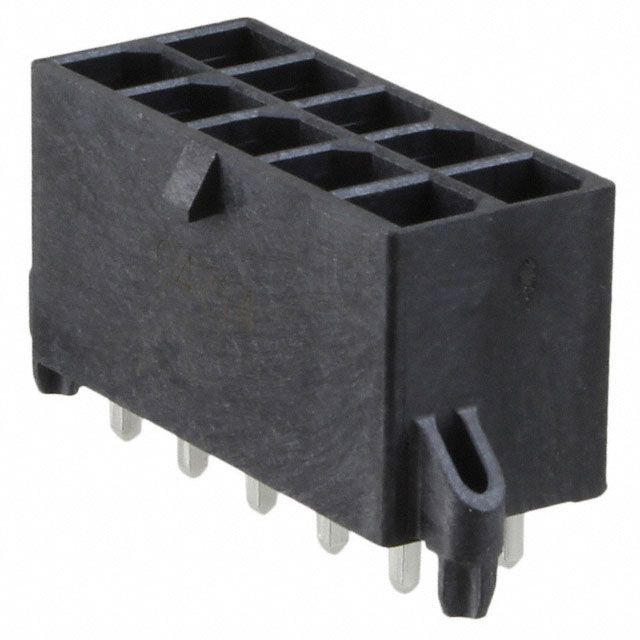

Vertical header assembly with 10 circuits and 10 male pin contacts. Features copper alloy contacts with nickel and gold plating, a 5.7mm pitch, and 3.73mm contact post length. Rated for 23A current and 600V voltage, operating between -40°C and 105°C. Through-hole mount with solder termination, UL94 V-0 flammability rating, and low halogen content.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 172065-0010 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Nickel, Gold |
| Contact Post Length | 3.73mm |
| Contact Type | Male Pin |
| Current Rating | 23A |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 640 |
| Packaging | Tray |
| Pitch | 5.7mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.224inch |
| Series | Mega-Fit® |
| Termination | Solder |
| Voltage Rating | 600V |
| RoHS | Compliant |
