Four-contact, female receptacle with a 5.84mm pitch and straight orientation. This combination line connector features a 600V AC/DC voltage rating and an 18A current rating. Constructed with UL94 V-0 flammability, it operates within a -40°C to 125°C temperature range and offers IP67 ingress protection. The black, crimp-style terminal connector measures 22.15mm in length and 28.86mm in width.
Current Rating18A
Quick Jump:
Technical Specifications
Molex 19418-0005 technical specifications.
General
| Color | Black |
| Current Rating | 18A |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Length | 22.15mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 312 |
| Packaging | Bulk |
| Pitch | 5.84mm |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 19418 |
| Termination | Crimp |
| DC Rated Voltage | 600V |
| Width | 28.86mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 19418-0005 Datasheet
Download the complete datasheet for Molex 19418-0005 to view detailed technical specifications.
No datasheet is available for this part.

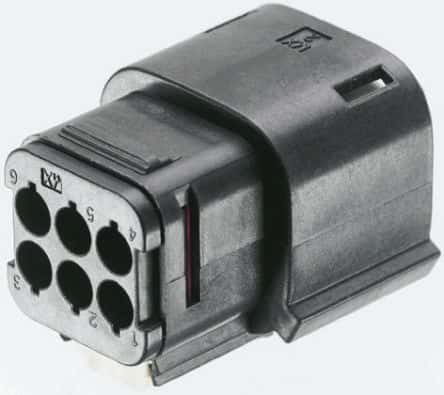

Product Images
