2-position, 1-row female receptacle connector with straight orientation and 5.84mm pitch. Features a 18A current rating, 600V AC voltage rating, and operates within a -40°C to 125°C temperature range. This black, UL94 V-0 flammability rated component utilizes crimp termination for 18AWG wire. IP67 rated for robust environmental protection.
Voltage Rating600V
Current Rating18A
MountingCable
Quick Jump:
Technical Specifications
Molex 19418-0008 technical specifications.
General
| Color | Black |
| Current Rating | 18A |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Length | 22.15mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Cable |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 312 |
| Packaging | Bulk |
| Pitch | 5.84mm |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 19418 |
| Termination | Crimp |
| Voltage Rating (AC) | 600V |
| Width | 22.51mm |
| Wire/Cable Gauge | 18AWG |
| Working Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 19418-0008 Datasheet
Download the complete datasheet for Molex 19418-0008 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

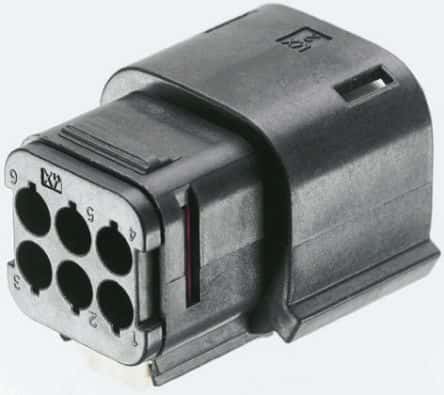

Product Images
