2-contact male combination line connector, straight orientation, crimp termination. Features a 5.84mm pitch, 18A current rating, and 600V AC max voltage rating. Operating temperature range from -40°C to 125°C. Constructed with UL94 V-0 flammability rating and low halogen content. IP67 rated for environmental protection.
Current Rating18A
Quick Jump:
Technical Specifications
Molex 19419-0007 technical specifications.
General
| Color | Black |
| Current Rating | 18A |
| Depth | 53.95mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 15.5mm |
| Length | 18.95mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 312 |
| Packaging | Bulk |
| Pitch | 5.84mm |
| Ratings | IP67 |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 19419 |
| Termination | Crimp |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 19419-0007 Datasheet
Download the complete datasheet for Molex 19419-0007 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

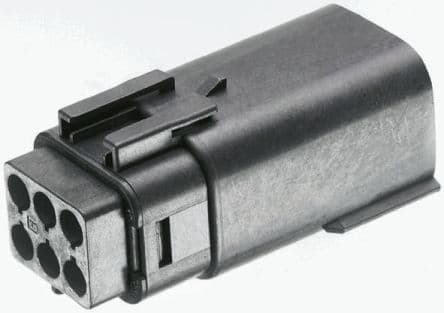

Product Images
