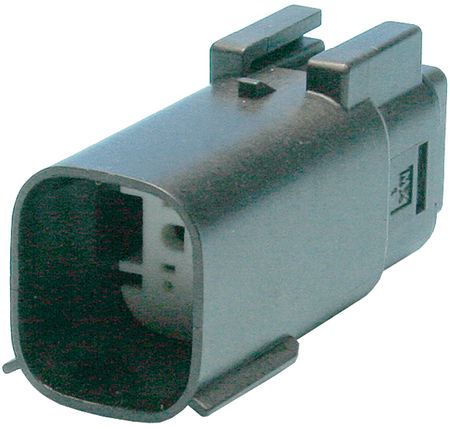

2-position, 1-row male pin combination line connector with a 5.84mm pitch. Features a 18A current rating and 600V AC max voltage rating, operating between -40°C and 125°C. This straight, free-hanging plug utilizes crimp termination for wire gauges 22-18AWG. Constructed with low halogen materials, it is UL94 V-0 flammability rated and IP67 compliant.
Current Rating18A
MountingFree Hanging
Quick Jump:
Technical Specifications
Molex 19419-0008 technical specifications.
General
| Color | Black |
| Contact Type | Male Pin |
| Current Rating | 18A |
| Depth | 53.95mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 15.5mm |
| Lead Free | Lead Free |
| Length | 18.95mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 5.84mm |
| Ratings | IP67 |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | MX150L™ 19419 |
| Termination | Crimp |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 22AWG |
Compliance
| RoHS | Compliant |
