Voltage Rating600V
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
Molex 1A3002-34 technical specifications.
General
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
13A
ELV
Compliant
Gender
Male
Halogen Free
Low Halogen
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Contacts
3
Orientation
Straight
Ratings
IP67
Reach SVHC Compliant
Yes
Series
130017
Strain Relief
Yes (With)
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
Molex 1A3002-34 Datasheet
Download the complete datasheet for Molex 1A3002-34 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

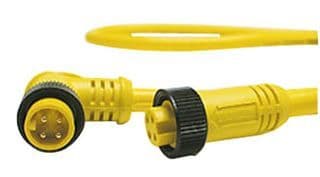

Product Images
