Molex
21039-0307
Cable Assembly 0.254m 1mm 14 POS Premo Flex FFC Jumper to Premo Flex FFC Jumper Premo-Flex™FFC Jumper Bag
Voltage Rating30V
Current Rating1.3A
Quick Jump:
Technical Specifications
Molex 21039-0307 technical specifications.
General
Cable Pitch
1mm
Color
White
Contact Location
Same Side
Current Rating
1.3A
ELV
Compliant
Lead Free
Lead Free
Length
10inch
Max Current Rating
1.3A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Number of Circuits
14
Number of Conductors
14
Number of Contacts
14
Number of Positions
14
Package Quantity
1
Packaging
Bag
Pitch
0.039inch
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
Premo-Flex™ 21039
Termination
Cable
Voltage Rating
30V
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
Molex 21039-0307 Datasheet
Download the complete datasheet for Molex 21039-0307 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

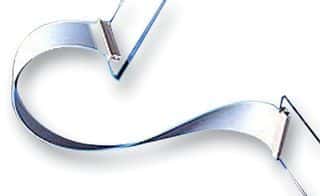

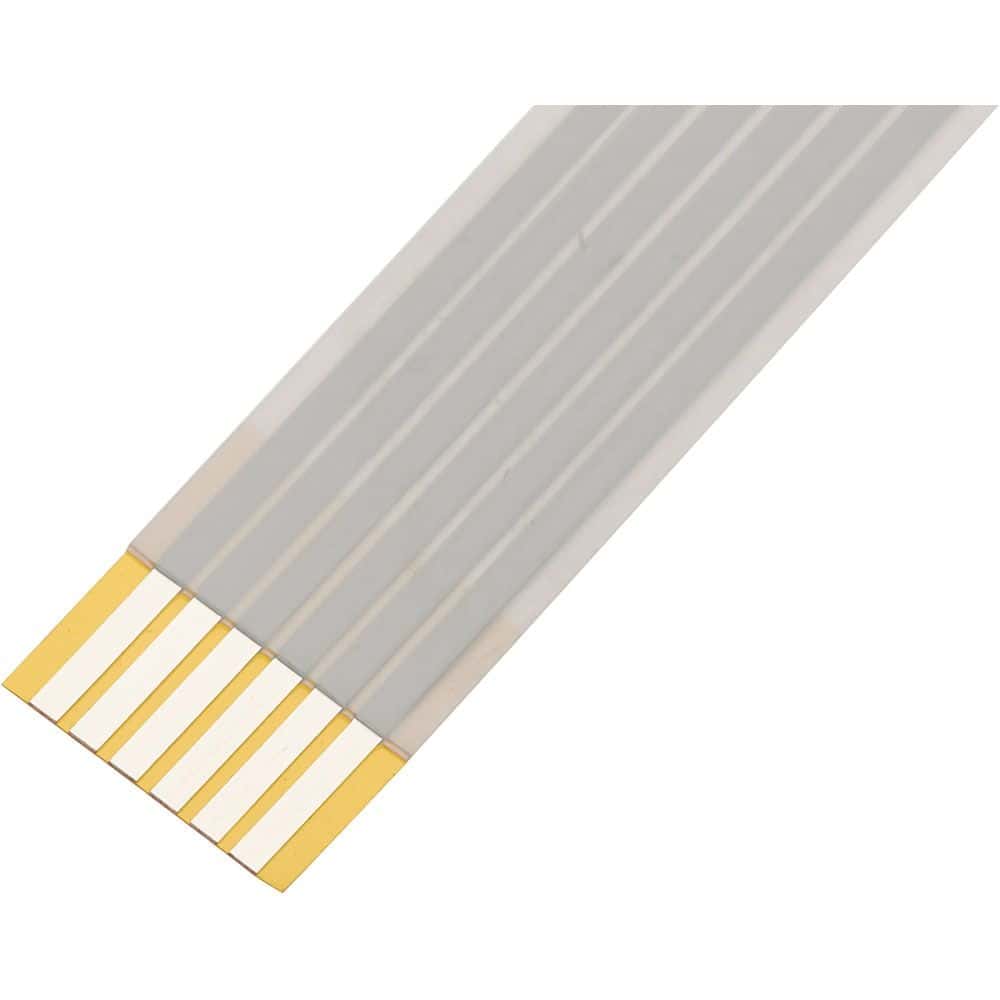

Product Images
