14-position, single-row male header connector with a 2.54mm pitch. Features brass contacts with tin/copper plating, a 4A current rating, and 250V voltage rating. Designed for through-hole mounting with straight orientation and solder termination. The white, low halogen housing has a UL94 V-0 flammability rating and operates between 0°C and 75°C.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-03-2141 technical specifications.
General
Color
White
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.295inch
Contact Plating
Tin, Copper
Contact Type
Male Pin
Current Rating
4A
Depth
2.34mm
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Housing Color
White
Length
35.31mm
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Circuits
14
Number of Contacts
14
Number of Positions
14
Number of Rows
1
Orientation
Straight
Package Quantity
4000
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
KK® 4030
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Molex 22-03-2141 Datasheet
Download the complete datasheet for Molex 22-03-2141 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

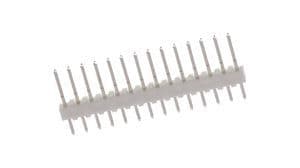

Product Images
