3-circuit, 1-row male pin header for PCB mounting. Features a 2.5mm pitch, straight orientation, and solder termination. Rated for 250V and 3A, with brass contacts plated in tin over copper. Operates from -40°C to 105°C and is UL94 V-0 flammability rated.
Voltage Rating250V
Current Rating3A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Molex 22-03-5035 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.138inch |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 4.9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 25000 |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SPOX |
| Shrouded | Yes (With) |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-03-5035 Datasheet
Download the complete datasheet for Molex 22-03-5035 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

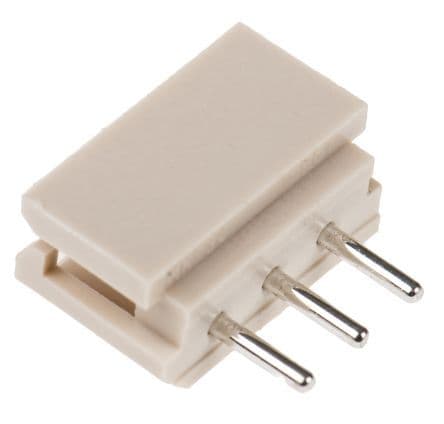

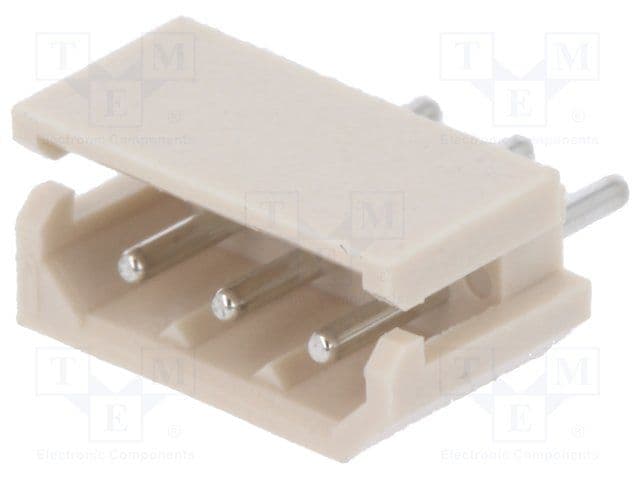

Product Images
