7-contact, 1-row male pin header with a 2.5mm pitch. Features brass contacts with tin/copper plating and a 3A current rating. Designed for through-hole mounting with a straight, solder termination. Operating temperature range of -40°C to 105°C and a 250V voltage rating. RoHS compliant with a natural insulator color.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-03-5075 technical specifications.
General
| Contact Material | Brass |
| Contact Mating Length | 0.138inch |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 4.9mm |
| Housing Color | Natural |
| Length | 19.9mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 5267 |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-03-5075 Datasheet
Download the complete datasheet for Molex 22-03-5075 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

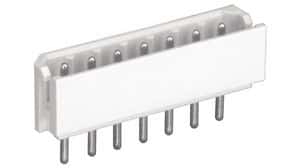

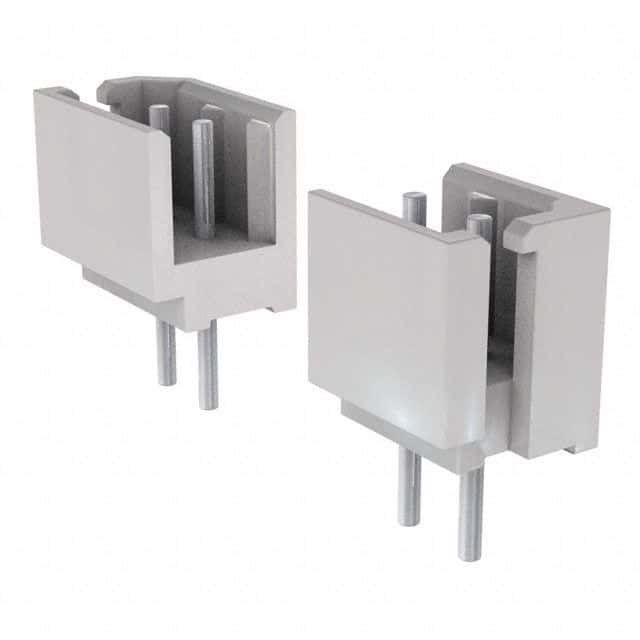

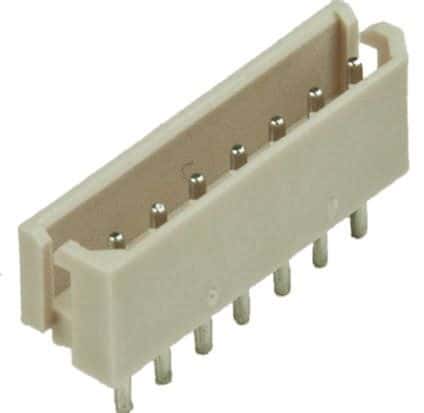

Product Images
