3-position, 1-row male header connector with a 2.5mm pitch. Features brass male pin contacts with tin and copper plating, rated for 3A current and 250V AC/DC. Through-hole mounting with a straight orientation, suitable for solder termination. Housing is natural colored, UL94 V-0 flammability rated, and low halogen. Operating temperature range from -40°C to 105°C.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-04-1031 technical specifications.
General
Color
Natural
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.295inch
Contact Plating
Tin, Copper
Contact Type
Male Pin
Current Rating
3A
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Housing Color
Natural
Lead Free
Lead Free
Lead Pitch
2.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Circuits
2
Number of Contacts
3
Number of Poles
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.5mm
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KK
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Molex 22-04-1031 Datasheet
Download the complete datasheet for Molex 22-04-1031 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

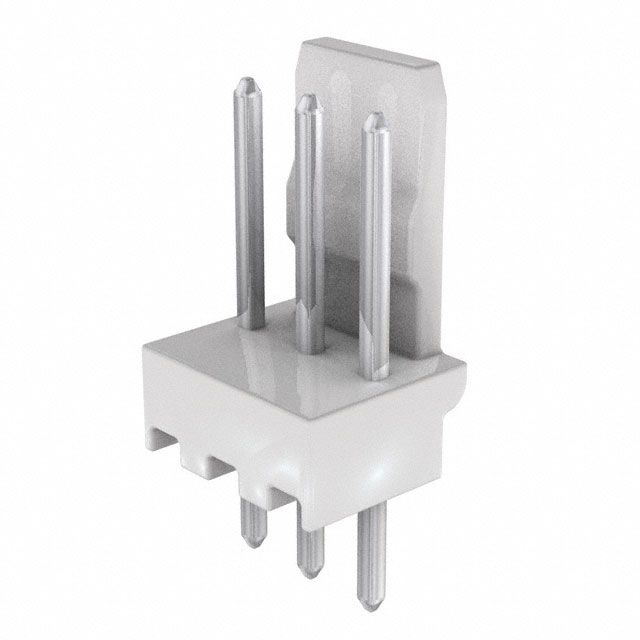

Product Images
