Right-angle male pin header with 14 positions and 14 contacts, featuring brass contacts with tin/copper plating and a 0.264-inch mating length. This white, through-hole mount component offers a 2.54mm pitch, 4A current rating, and 250V voltage rating. Designed for solder termination, it operates within a temperature range of 0°C to 75°C.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-05-3141 technical specifications.
General
| Color | White |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.264inch |
| Contact Plating | Tin, Copper |
| Contact Post Length | 3.58mm |
| Contact Type | Male Pin |
| Current Rating | 4A |
| Depth | 12.83mm |
| Gender | Male |
| Housing Color | White |
| Length | 35.56mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | KK® 7478 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-05-3141 Datasheet
Download the complete datasheet for Molex 22-05-3141 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

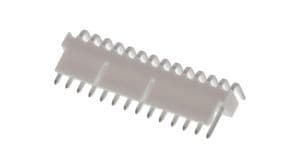

Product Images
