Four-position, single-row male pin header with a 2.54mm pitch, designed for through-hole mounting. Features brass contacts with gold plating, a 4A current rating, and a 250V voltage rating. The white housing is constructed from UL94 V-0 rated material, offering low halogen content and lead-free compliance. This connector operates within a temperature range of 0°C to 75°C.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-10-2041 technical specifications.
General
Color
White
Contact Material
Brass
Contact Mating Length
0.295inch
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
4A
Depth
2.34mm
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Housing Color
White
Lead Free
Lead Free
Length
9.91mm
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Circuits
4
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KK® 4030
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Molex 22-10-2041 Datasheet
Download the complete datasheet for Molex 22-10-2041 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

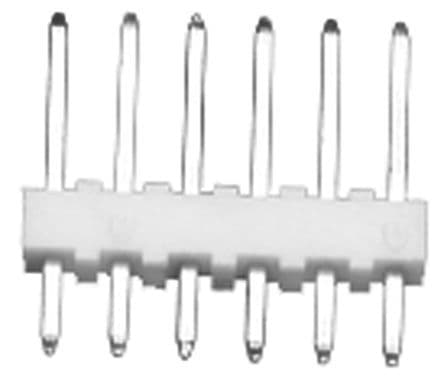

Product Images
