Vertical male pin header with 10 circuits and 2.54mm pitch, featuring a white housing and gold plating for enhanced conductivity. This through-hole mount connector offers a 4A current rating and a 250V DC voltage rating, with a maximum operating temperature of 75°C. Constructed with brass and bronze contacts, it includes a friction lock mechanism for secure mating. The component is RoHS compliant and rated UL94 V-0 for flammability.
Voltage Rating250V
Current Rating4A
MountingThrough Hole, Cable
Quick Jump:
Technical Specifications
Molex 22-11-2102 technical specifications.
General
| Color | White |
| Contact Material | Brass, Bronze |
| Contact Mating Length | 0.295inch |
| Contact Plating | Gold, Tin |
| Contact Type | Male Pin |
| Current Rating | 4A |
| Depth | 6.35mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 10.05mm |
| Housing Color | White |
| Lead Free | Contains Lead |
| Length | 25.4mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole, Cable |
| Number of Circuits | 9 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 6373 |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-11-2102 Datasheet
Download the complete datasheet for Molex 22-11-2102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

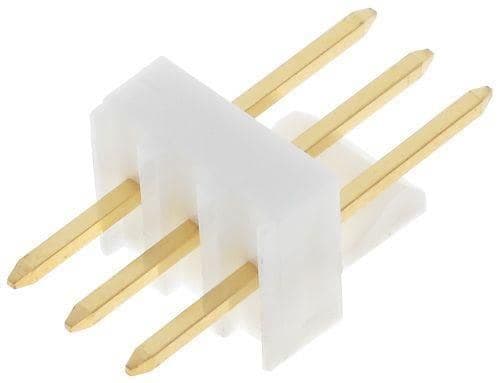

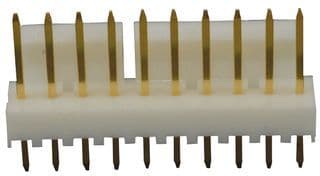

Product Images
