This female header connector features a 0.1-inch pitch and a straight, through-hole mounting orientation. It offers 4 contacts arranged in a single row, with brass contacts plated in tin. The connector has a current rating of 2.5A and a voltage rating of 250V, operating within a temperature range of 0°C to 75°C. Its housing is white and it is RoHS compliant.
Voltage Rating250V
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-14-2044 technical specifications.
General
| Color | White |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 2.5A |
| Depth | 7.7mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 7.9mm |
| Housing Color | White |
| Length | 10.06mm |
| Max Current Rating | 2.5A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Plating | Tin |
| RoHS Compliant | Yes |
| Series | KK® 4455 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-14-2044 Datasheet
Download the complete datasheet for Molex 22-14-2044 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

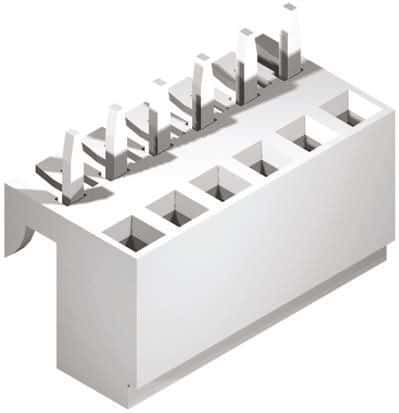

Product Images
