Right-angle, end-to-end stackable PC board connector featuring 10 circuits and a 2.54mm pitch. This female connector utilizes brass contacts with tin plating, offering a 2.5A current rating and a 250V voltage rating. Designed for through-hole mounting and solder termination, it operates within a temperature range of 0°C to 75°C. The white housing is low halogen and lead-free compliant.
Voltage Rating250V
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-15-2106 technical specifications.
General
| Color | White |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 2.5A |
| Depth | 7.9mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 4.7mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 25.3mm |
| Max Current Rating | 2.5A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | KK® 4455 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-15-2106 Datasheet
Download the complete datasheet for Molex 22-15-2106 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

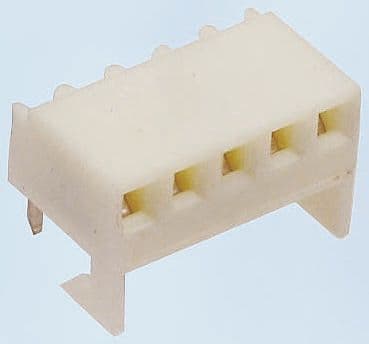

Product Images
