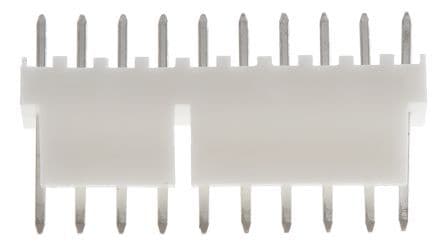

Straight male pin header connector with 10 contacts in a single row, featuring a 2.54mm (0.1 inch) pitch. This through-hole mount receptacle offers a 4A current rating, 250V voltage rating, and operates between 0°C and 75°C. Constructed with brass and copper alloy contacts with tin/copper plating, it includes a white, UL94 V-0 rated insulator and a friction lock mating feature. Approvals include UL and CSA, with RoHS compliance.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-23-2101 technical specifications.
General
| Approvals | UL, CSA |
| Color | White |
| Contact Material | Brass, Copper Alloy |
| Contact Mating Length | 0.295inch |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 4A |
| Depth | 6.35mm |
| Flammability Rating | UL94 V-0 |
| Height | 10.03mm |
| Housing Color | White |
| Lead Pitch | 2.54mm |
| Length | 25.4mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 9 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 6373 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-23-2101 Datasheet
Download the complete datasheet for Molex 22-23-2101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
