10-position, 1-row male header connector with a 2.54mm pitch. Features straight, through-hole mounting with solder termination and a 4A current rating. Constructed with brass/bronze contacts plated in tin, copper, and gold, housed in a low-halogen, UL94 V-0 rated nylon insulator. Operating temperature range is 0°C to 75°C with a 250V AC/DC voltage rating.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-27-2101 technical specifications.
General
| Color | Natural, White |
| Contact Material | Brass, Bronze |
| Contact Mating Length | 0.295inch |
| Contact Plating | Tin, Copper, Gold |
| Contact Type | Male Pin |
| Current Rating | 4A |
| Depth | 5.8mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 8.38mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Material | Nylon |
| Max Current Rating | 4A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 9 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-27-2101 Datasheet
Download the complete datasheet for Molex 22-27-2101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

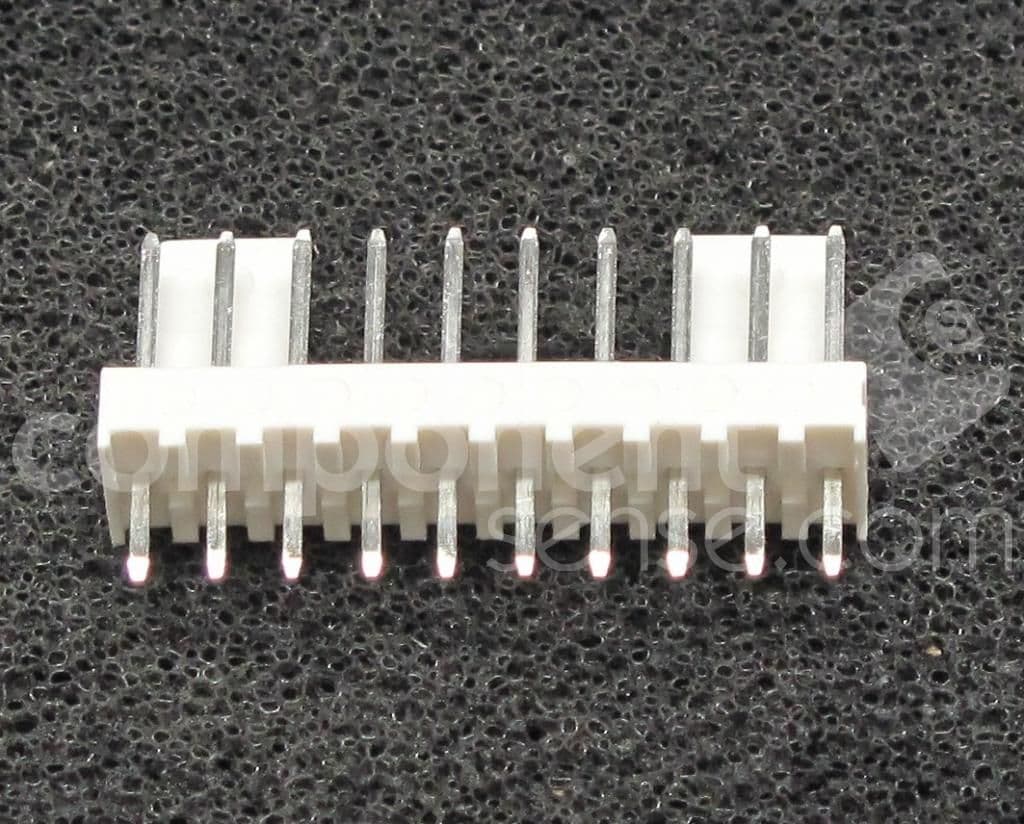

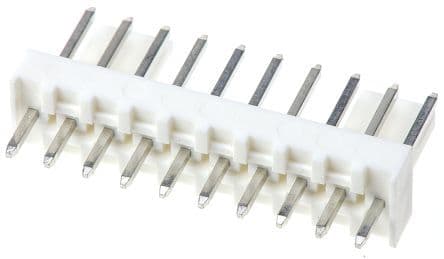

Product Images
