13-position, single-row female connector housing with a 3.96mm pitch, designed for free-hanging, cable mounting. Features a natural colored, straight orientation housing with a 17mm depth, 52.32mm length, and 6.6mm width. Rated for a maximum operating temperature of 75°C and a minimum of 0°C, with a maximum voltage rating of 250V AC. This RoHS compliant component utilizes crimp termination for its 13 non-gendered contacts.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 26-03-4131 technical specifications.
General
| Color | Natural |
| Contact Gender | Female |
| Contact Type | Non Gendered |
| Depth | 17mm |
| Gender | Female |
| Housing Color | Natural |
| Length | 52.32mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 13 |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 3.96mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 6442 |
| Termination | Crimp |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 26-03-4131 Datasheet
Download the complete datasheet for Molex 26-03-4131 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

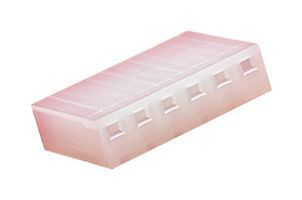

Product Images
