2-circuit, 1-row male header connector with 3.96mm pitch. Features straight, through-hole mounting with solder termination and a 6A current rating. Constructed with brass contacts plated in tin over copper, housed in black UL94 V-0 flammability rated insulator. Rated for 250V AC/DC, operating temperature range of 0°C to 75°C, and includes locking mechanism. RoHS compliant.
Voltage Rating250V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 26-48-1025 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.45inch |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 7A |
| Depth | 9.02mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 12.8mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 3.96mm |
| Length | 7.87mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 3.96mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 41671 |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 26-48-1025 Datasheet
Download the complete datasheet for Molex 26-48-1025 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

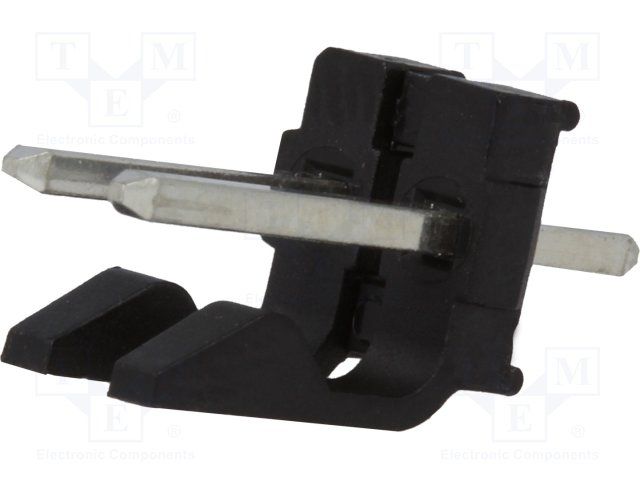

Product Images
