2-circuit, 1-row male pin header connector with a 3.96mm pitch. Features brass contacts with gold plating, a 7A current rating, and a 250V voltage rating. Designed for through-hole mounting with a straight orientation and solder termination. The white insulator housing is UL94 V-0 flammability rated and lead-free.
Voltage Rating250V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 26-61-4020 technical specifications.
General
Color
Natural
Contact Material
Brass
Contact Mating Length
0.45inch
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
7A
Depth
10.01mm
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Height
14.73mm
Housing Color
Natural
Lead Free
Lead Free
Length
7.77mm
Max Current Rating
7A
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
1400
Packaging
Bulk
Pitch
3.96mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KK® 41791
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Molex 26-61-4020 Datasheet
Download the complete datasheet for Molex 26-61-4020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

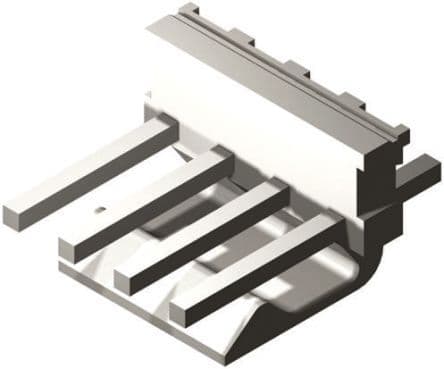

Product Images
