20-position, 2-row female receptacle with a 3.5mm pitch, designed for cable mounting. This straight, combination line connector features a 22A current rating and 250V DC rated voltage. Constructed with Nylon, Glass, and Polyamide body material, it operates within a temperature range of -40°C to 125°C. The connector is RoHS compliant and low halogen, with a black color and crimp termination.
Current Rating22A
MountingCable
Quick Jump:
Technical Specifications
Molex 33472-2001 technical specifications.
General
| Body Material | Nylon, Glass, Polyamide |
| Color | Black |
| Current Rating | 22A |
| Depth | 36.95mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 24.8mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 312 |
| Packaging | Bulk |
| Pitch | 3.5mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 33472 |
| Termination | Crimp |
| DC Rated Voltage | 250V |
| Width | 46.65mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 33472-2001 Datasheet
Download the complete datasheet for Molex 33472-2001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

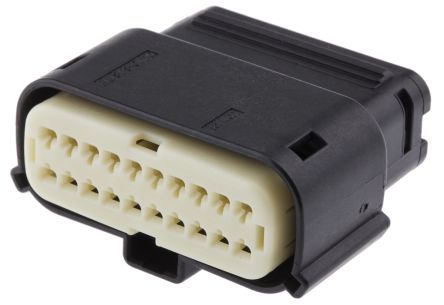

Product Images
