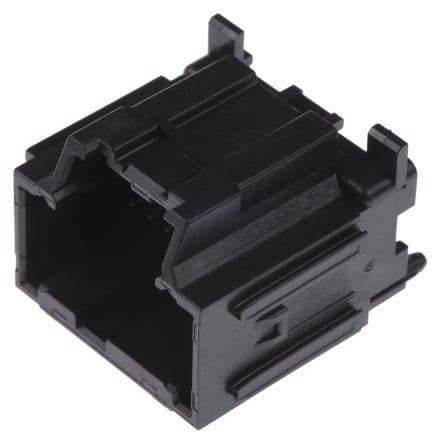

Vertical header assembly, 16 circuits, male gender, featuring brass contacts with nickel and tin plating. This through-hole mount connector offers a 2.54mm pitch, 10A current rating, and 500V DC voltage rating. Operating temperature range is -40°C to 100°C. The assembly is RoHS compliant, low halogen, and presented in black packaging on a tray.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 34690-0160 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Nickel, Tin |
| Current Rating | 10A |
| Depth | 28.05mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 15.86mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 16 |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 616 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 34690 |
| Termination | Through Hole |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
| Width | 28.96mm |
| RoHS | Compliant |
