Technical Specifications
Molex 34825-0125 technical specifications.
General
| Color | Grey |
| Contact Material | Brass |
| Contact Plating | Nickel, Tin |
| Current Rating | 3A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 520 |
| Packaging | Tray |
| Pitch | 2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 34825 |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 34825-0125 Datasheet
Download the complete datasheet for Molex 34825-0125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

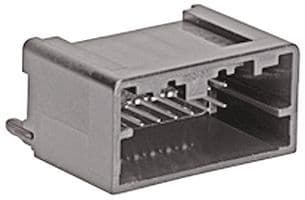

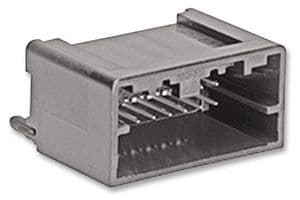

Product Images
